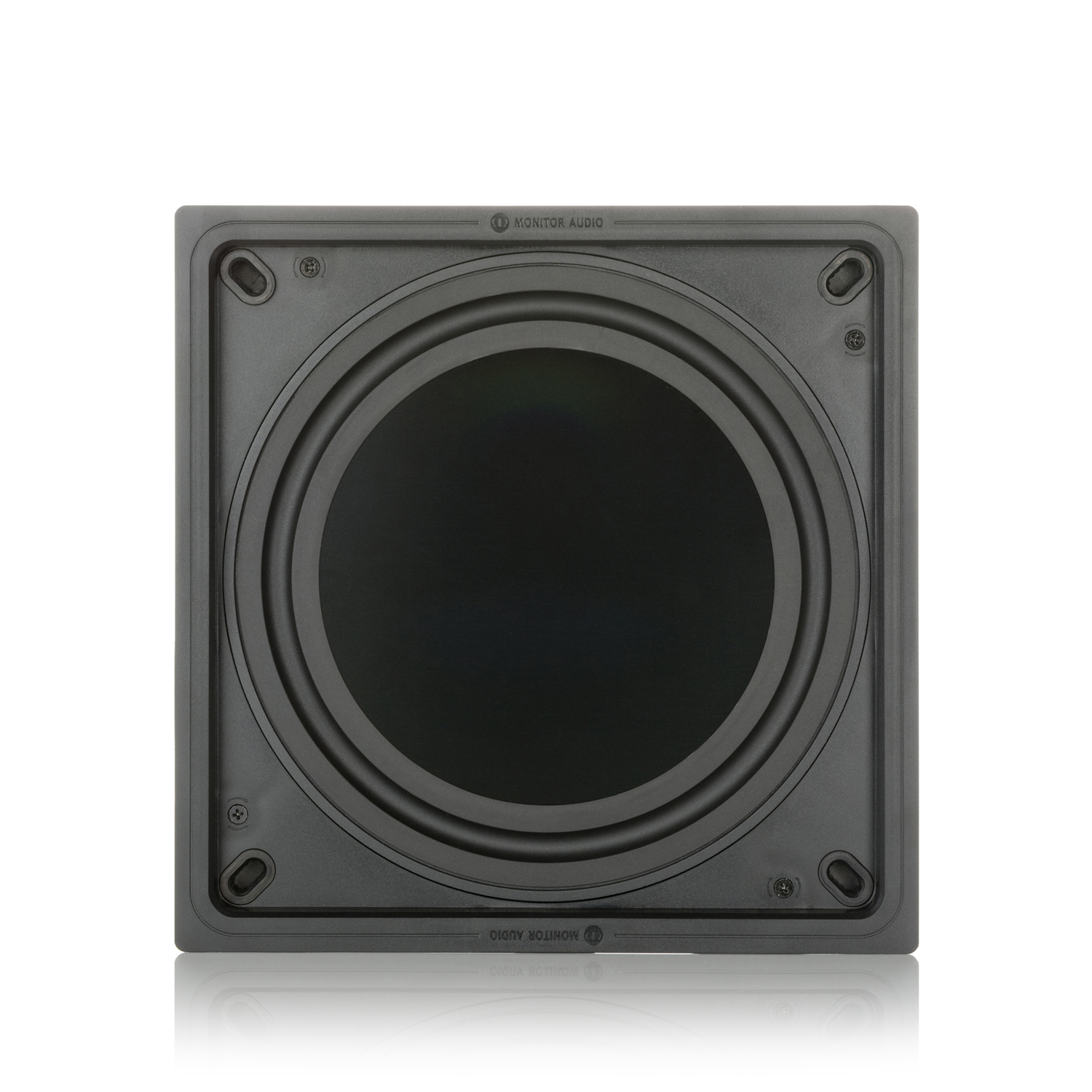

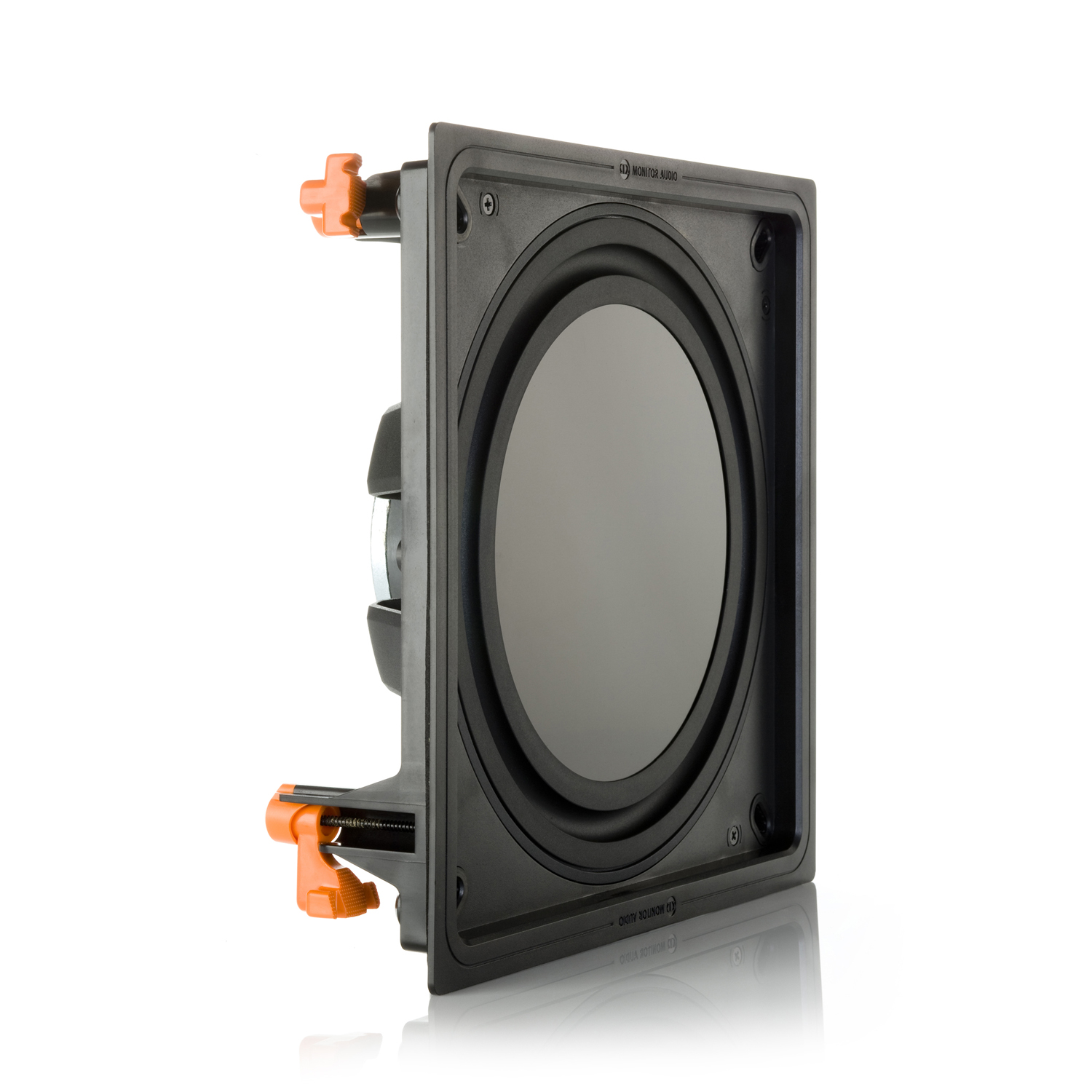

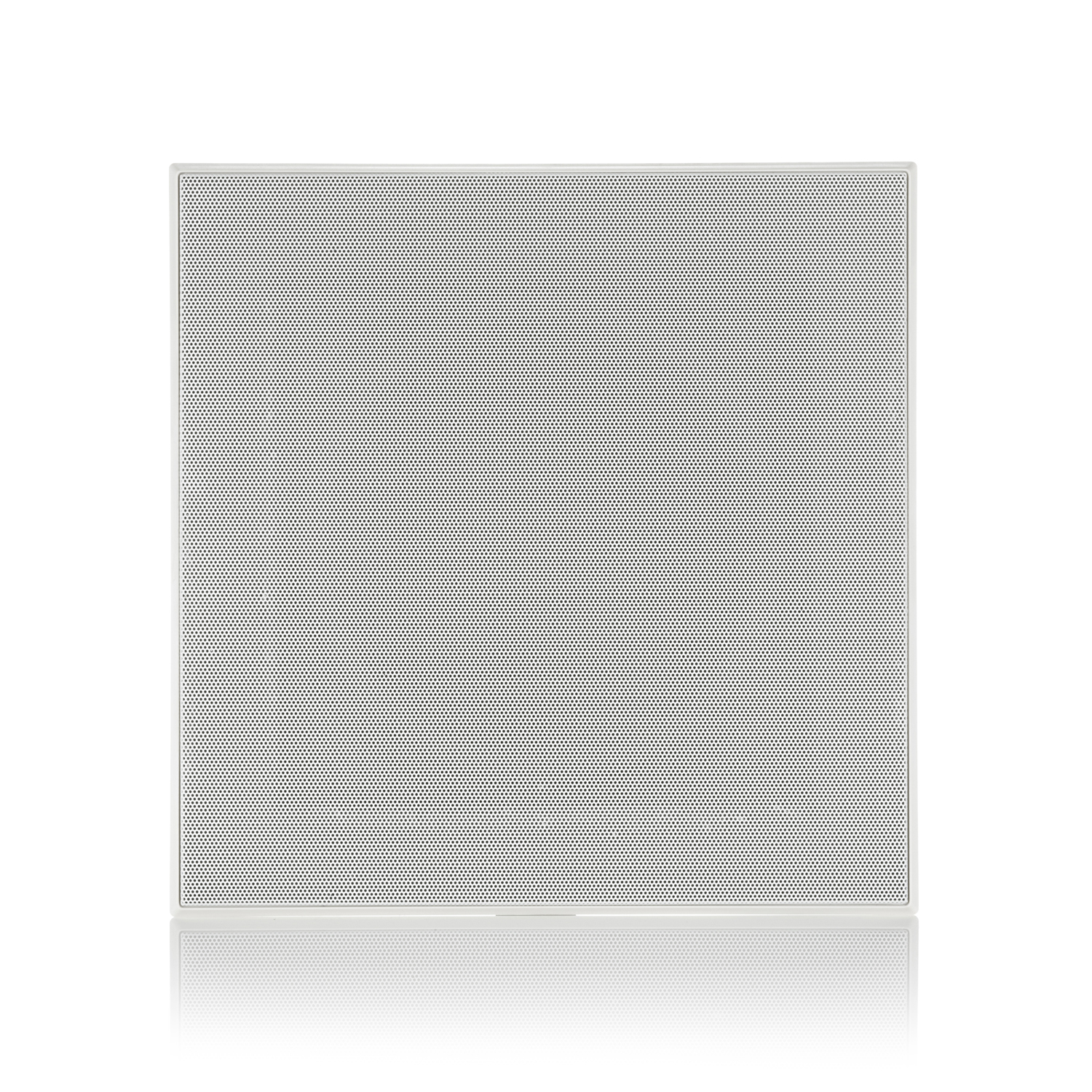

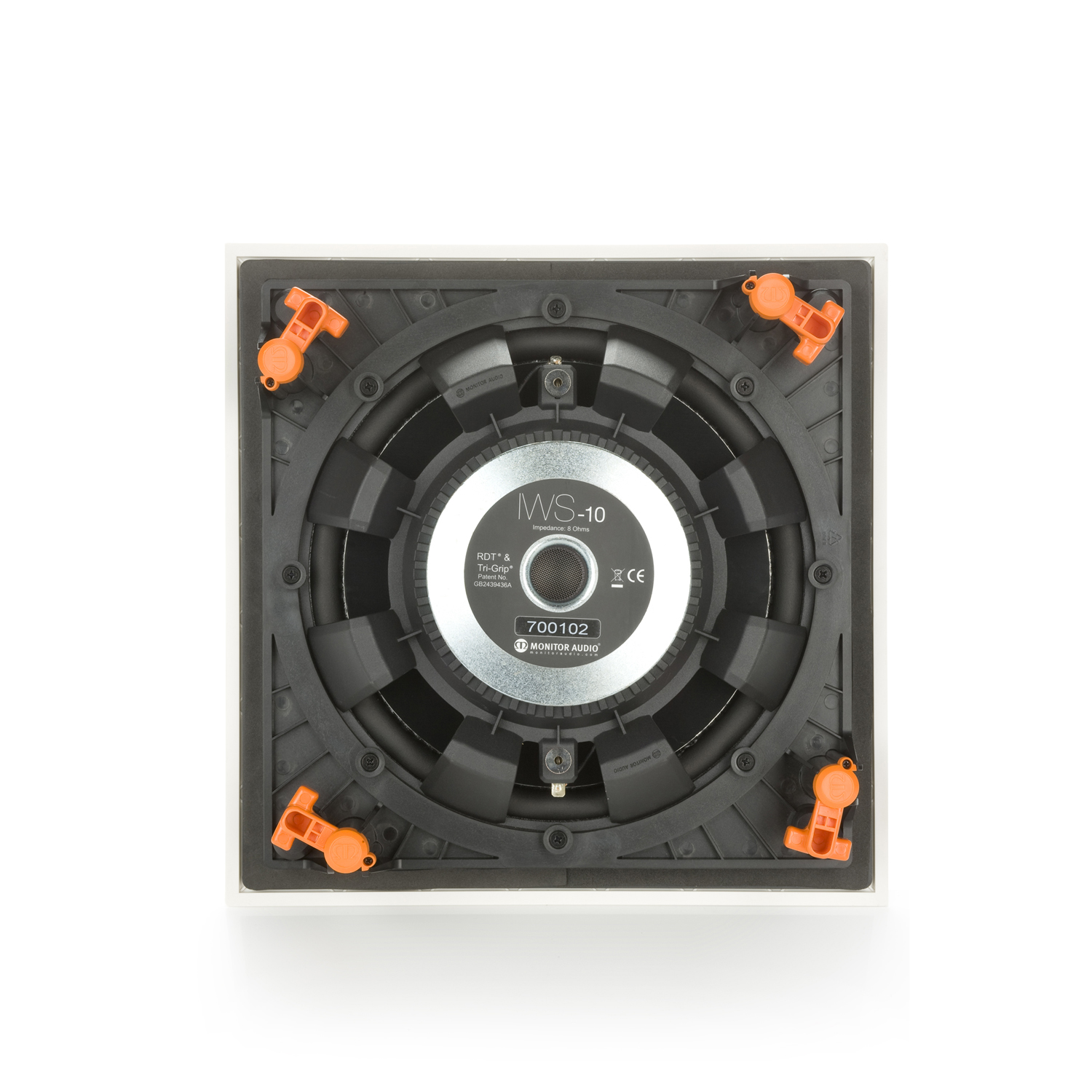

The IWS-10 is specified to produce excellent bass quality in a range of wall, ceiling, even floor locations, ideally but not exclusively with its IWB-10 back box. The IWS-10 subwoofer driver employs a rigid, flat 10” surface of 10 mm (3/8) RDT material derived from Monitor audio’s acclaimed ‘Platinum’ series of high-end speakers. A large vented pole helps to move air quickly, reducing power compression and increasing heat dissipation. It features Monitor Audio’s patented Tri-Grip clamping system and paintable trim-less grille and frame edge.
Products specifications
|
Product Type
|
Subwoofer |
|
Power Handling
|
150 W |
|
X-Way
|
N/A |
|
Frequency Response
|
"28 Hz — 120 Hz
(when mounted in optimum enclosure)" |
|
Impedence
|
8 Ohms |
|
Sensitivity
|
86 dB |
|
Diameter
|
N/A |
|
Cut-Out Dimension
|
11 x 11 |
|
Bracket
|
N/A |
|
Length
|
12.37" |
|
Width
|
3.62" |
|
Height
|
12.37" |
|
Weight
|
9.50lbs |
|
Tweeter Type
|
N/A |
|
Tweeter Size
|
N/A |
|
Midrange Type
|
N/A |
|
Midrange Size
|
N/A |
|
Woofer Type
|
C-CAM RDT |
|
Woofer Size
|
10" |
|
Bass Alignment
|
Sealed with optional enclosure or infinite baflle |
|
Finish
|
White Grilles |
